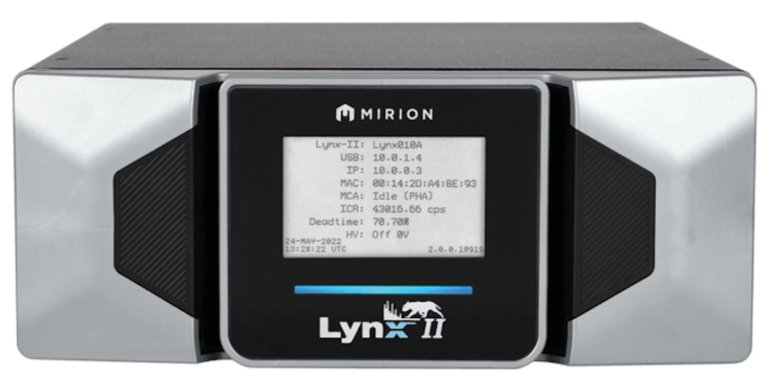

LYNX II - DIGITAL SIGNAL ANALYZER
FEATURES
- Front panel LCD
- Cybersecurity features built on a Linux platform
- Integrated rack mountable MCA based on Digital Signal Processing (DSP) technology
- Two groups of 32k channel conversion gain/spectral memory
- Operates in pulse height analysis (PHA), multichannel scaling (MCS), dual channel loss free counting (LFC), multispectral scaling (MSS) and time-stamped list modes
- Superior count rate and temperature stability
- Flexible range of processing time parameters for precise match to application requirements
- 10/100/1000 Base TX Ethernet and USB On-the-Go (OTG) for fast, convenient industry-standard communications
- Full complement of control and signal input/output interfaces
- Three HVPS ranges to support detectors with low, medium or high bias requirements
- Advanced auto pole/zero US Patent #7725281, baseline restoration and digital stabilization capability
- Adjustable digital signal delay, input signal delay, and coincidence window for advanced coincidence timing applications
- Advanced Coincidence counting modes store both original full spectrum and gated spectrum for complete traceability and data control
- Multiple trace analog and digital oscilloscope to ensure easy setup and maintenance
- Full-featured support through Genie™ 2000/Apex® spectroscopy software
- Optional software development kit with examples
- Password-protected built-in web server interface allows easy and remote access to spectral display and status, acquisition control, instrument setup, and diagnostics
